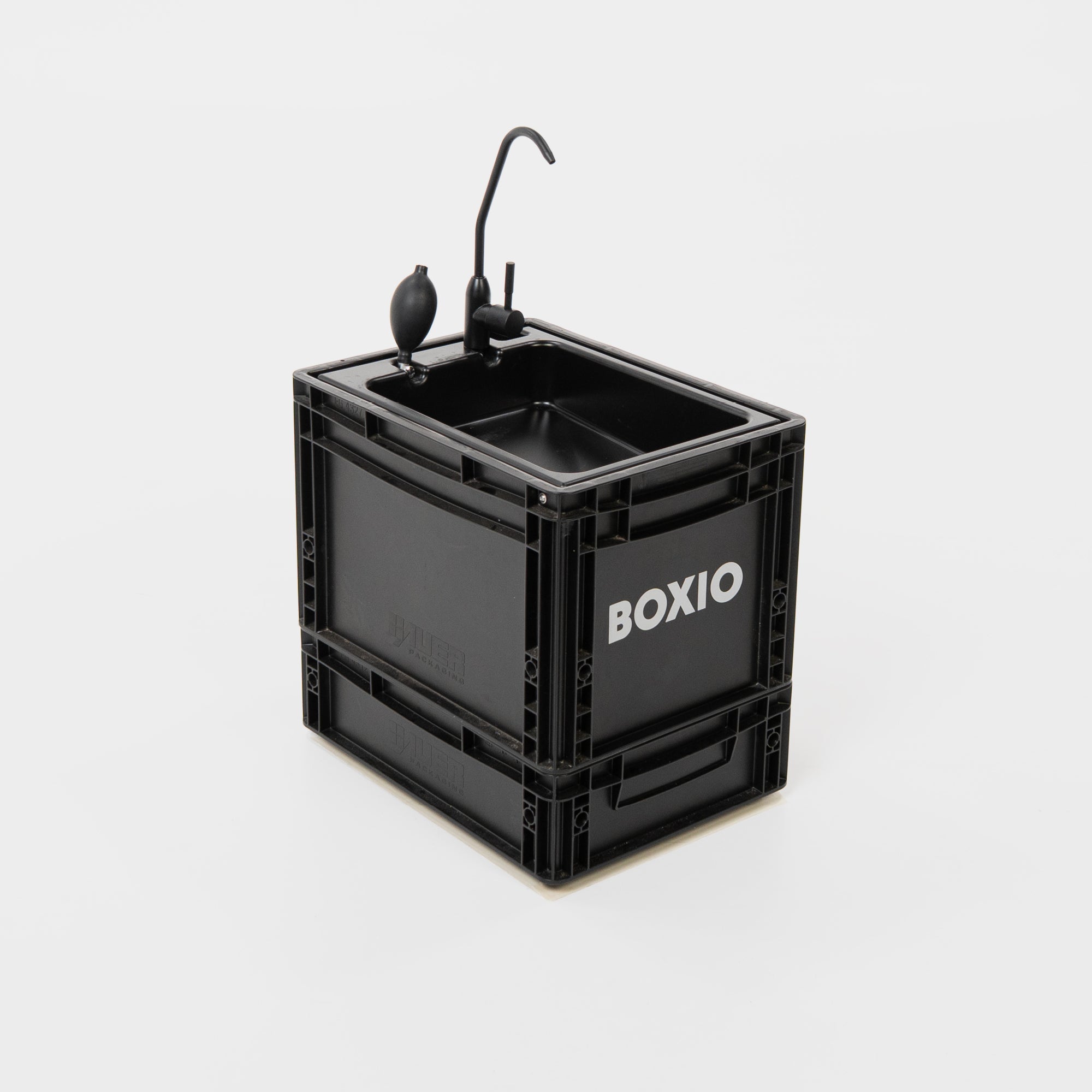

BOXIO WASH MAX + Washbasin and filter system

Fresh water canister: 5L (1.10 gal)
Waste water canister: 5L (1.10 gal)

Length: 40 cm (15.75")
Width: 30 cm (11.81")
Height: 39 cm (15.35")

Height WASH: 28 cm (11.02")
Height SOLO UP: 12 cm (4.72")

Weight: 5,61 kg (12.37 lbs)

Main materials: ABS, PP, HDPE, stainless steel, silicone, nylon, PVC, ceramic, rubber

Special features:

• Water filter with 3-stage technology (pre-filter: PP Cotton; ultrafiltration: UF membrane; activated carbon) up to 8,000 liters
• Filters 99.99% of bacteria
• Works without electricity and water pipe

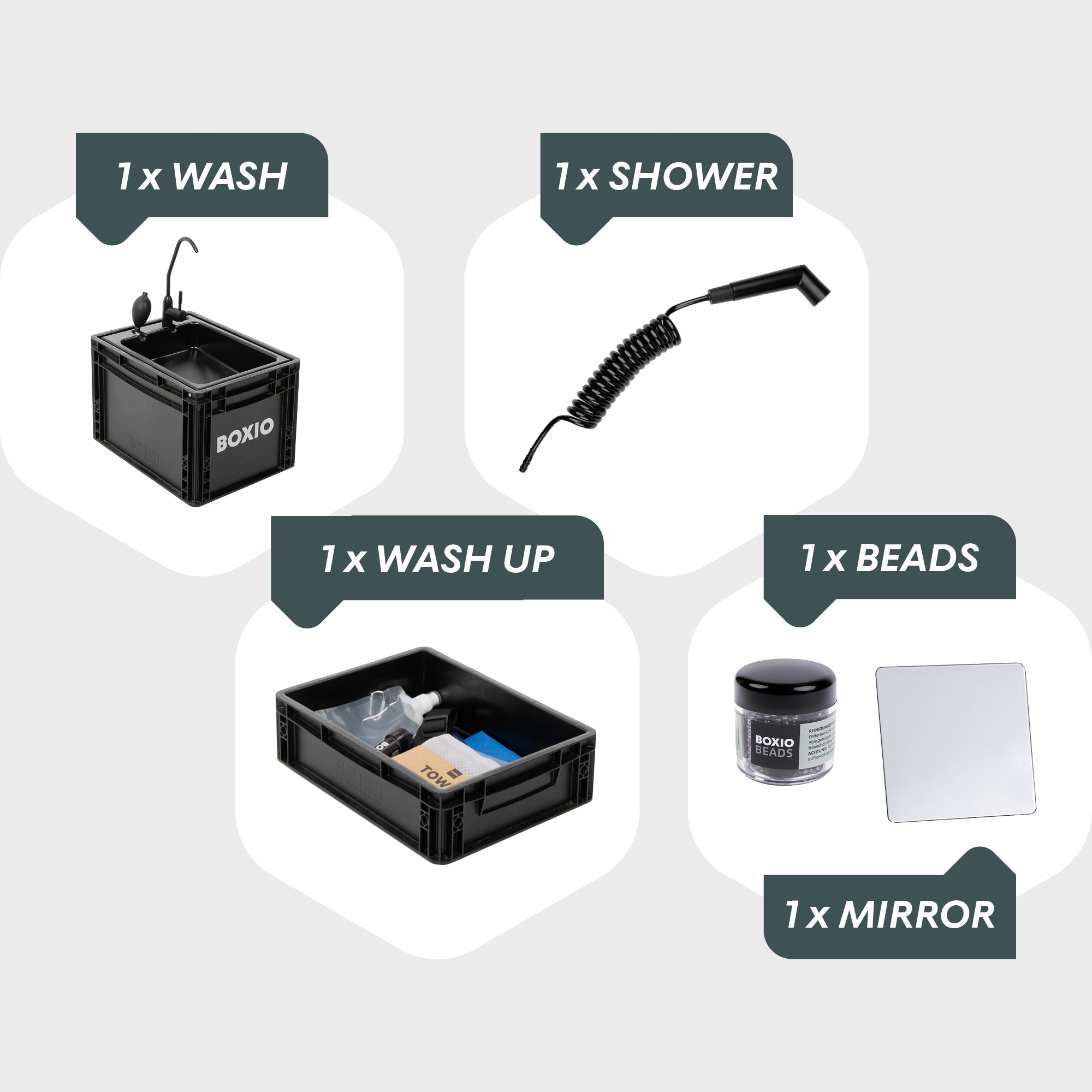

Scope of delivery:

1 x BOXIO WASH PLUS:

• Eurobox with washbasin insert and lid
• Fresh water canister (5L)
• Waste water canister (5L)

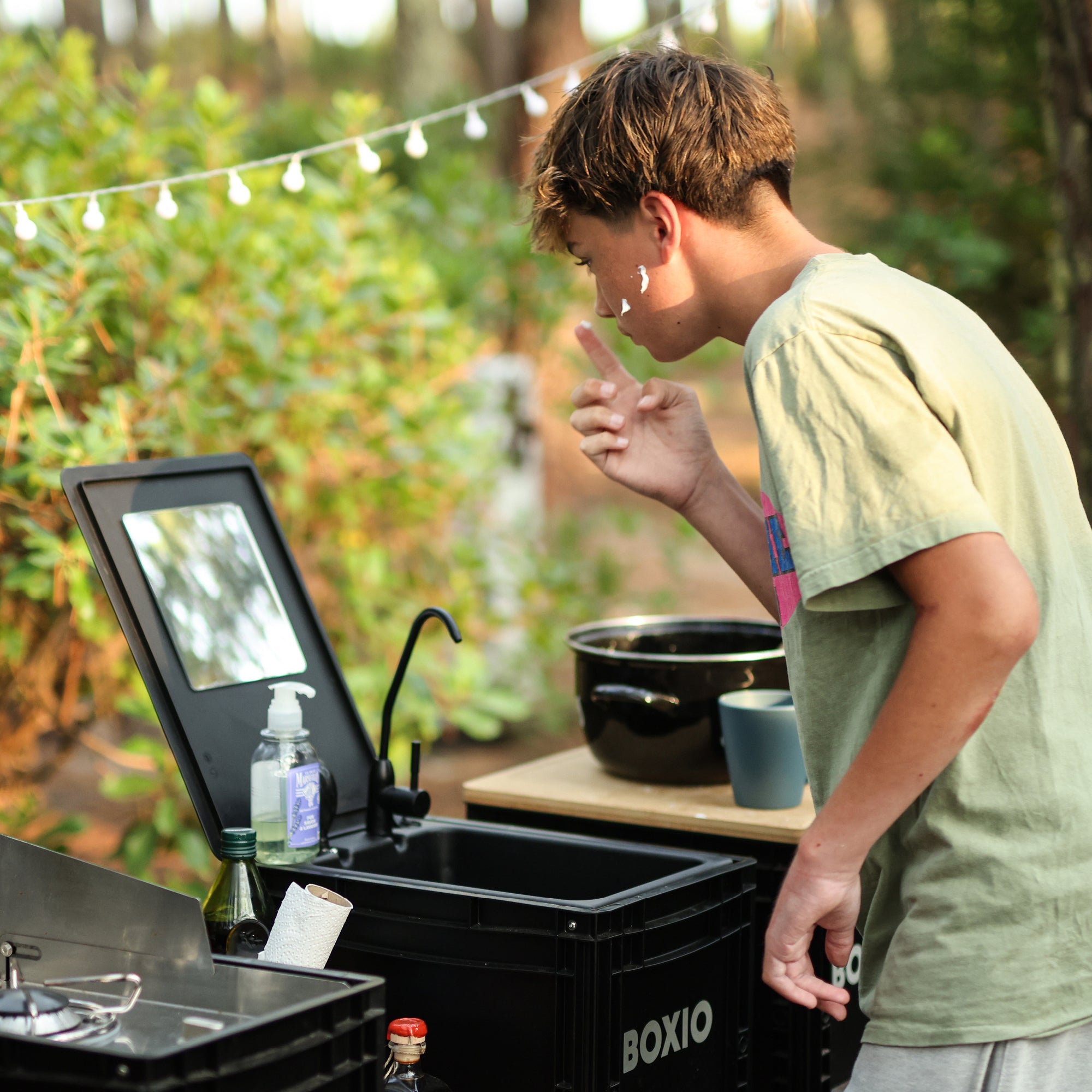

• 1 x BOXIO Mirror
• 1 x BOXIO Shower

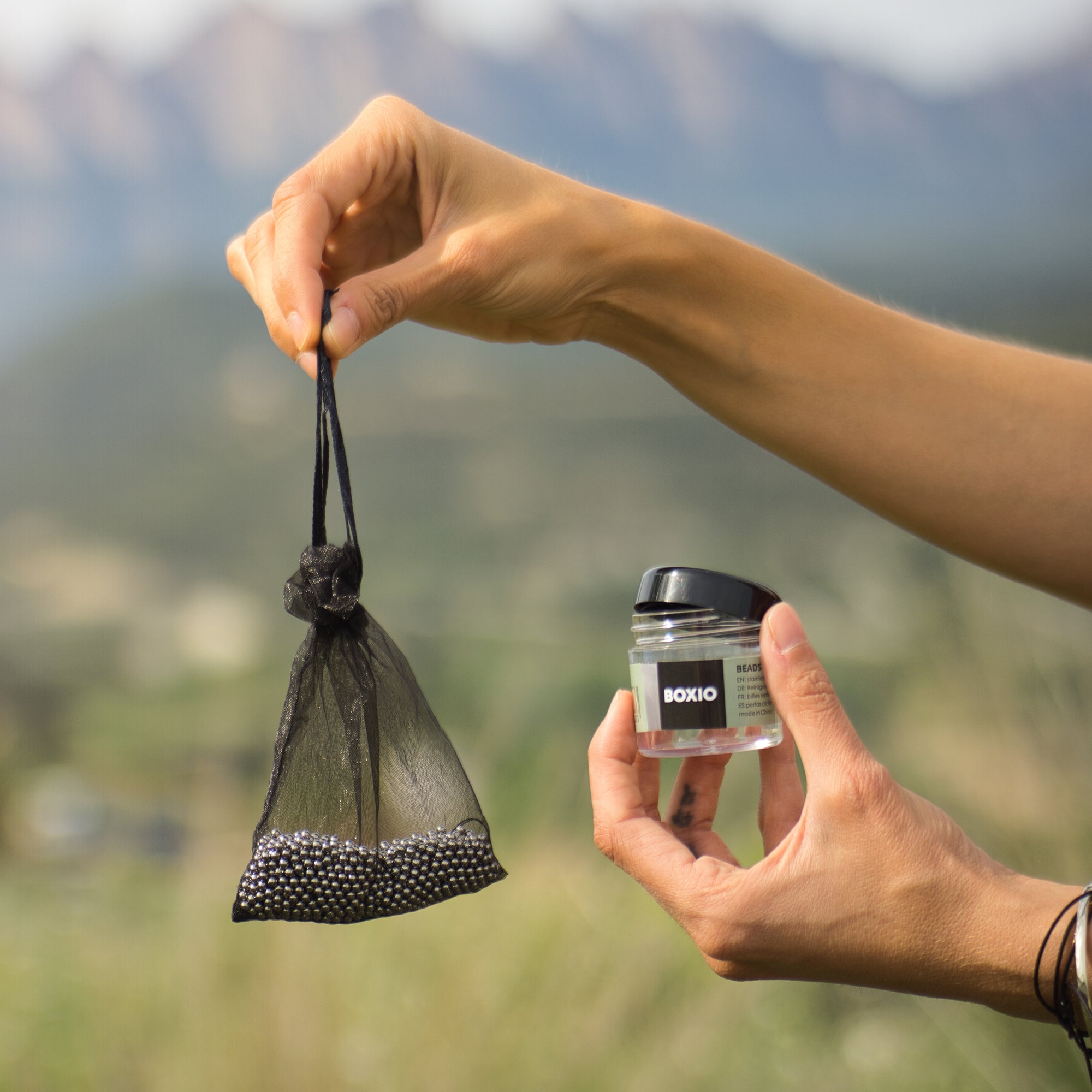

• 1 x BOXIO Beads
• Hand pump
• Water tap
• Hoses and fresh water tank feed-through
• 2 x screw cap fresh water (1 x closed, 1 x cap for tank feed-through for the fresh water tank)
• 2 x screw caps for service water (1 x closed as slosh protection, 1 x with sealing membrane)
• Strainer for the drain
• Drain plug

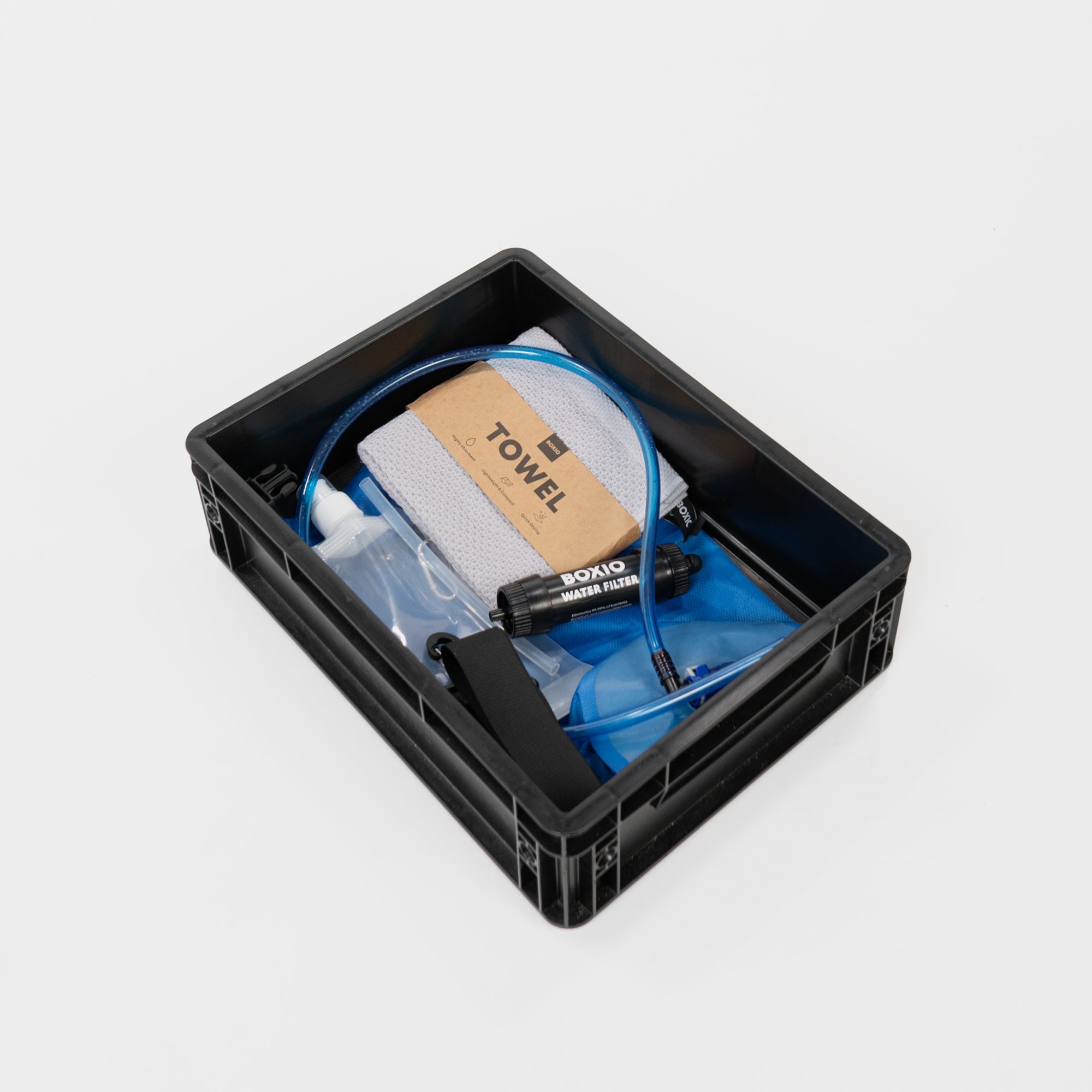

1 x BOXIO WASH UP:

• BOXIO Solo up
• BOXIO Water Filter System ( replacement pads for filters can be purchased in stock pack)
• BOXIO Towel

WASH installation instructions:

Click here for the assembly video of the mobile washbasin: Assembly video BOXIO - WASH

• Place the washbasin on a stable, level surface.
• Connect the hand pump and check that all tanks are correctly installed.

Special features of the assembly:

• Regular cleaning of the tanks recommended to avoid odors.
• Protect against frost by draining the tanks.

Safety: Detailed instructions can be found in the data sheet and the assembly instructions, available in several languages download here.

3-stage filtration of water from freshwater sources

1. Pre-filter made of PP cotton: removes sand, rust, suspended solids, sediment and protects membrane from clogging
2. Ultrafiltration from UF membrane: removes 99.99% of bacteria*, protozoa & microplastics
3. Activated carbon: absorbs odors and bad taste

The water filter can be used in various ways (illustrations can be found in the assembly instructions)

• the Straw offers the option of drinking directly from the source

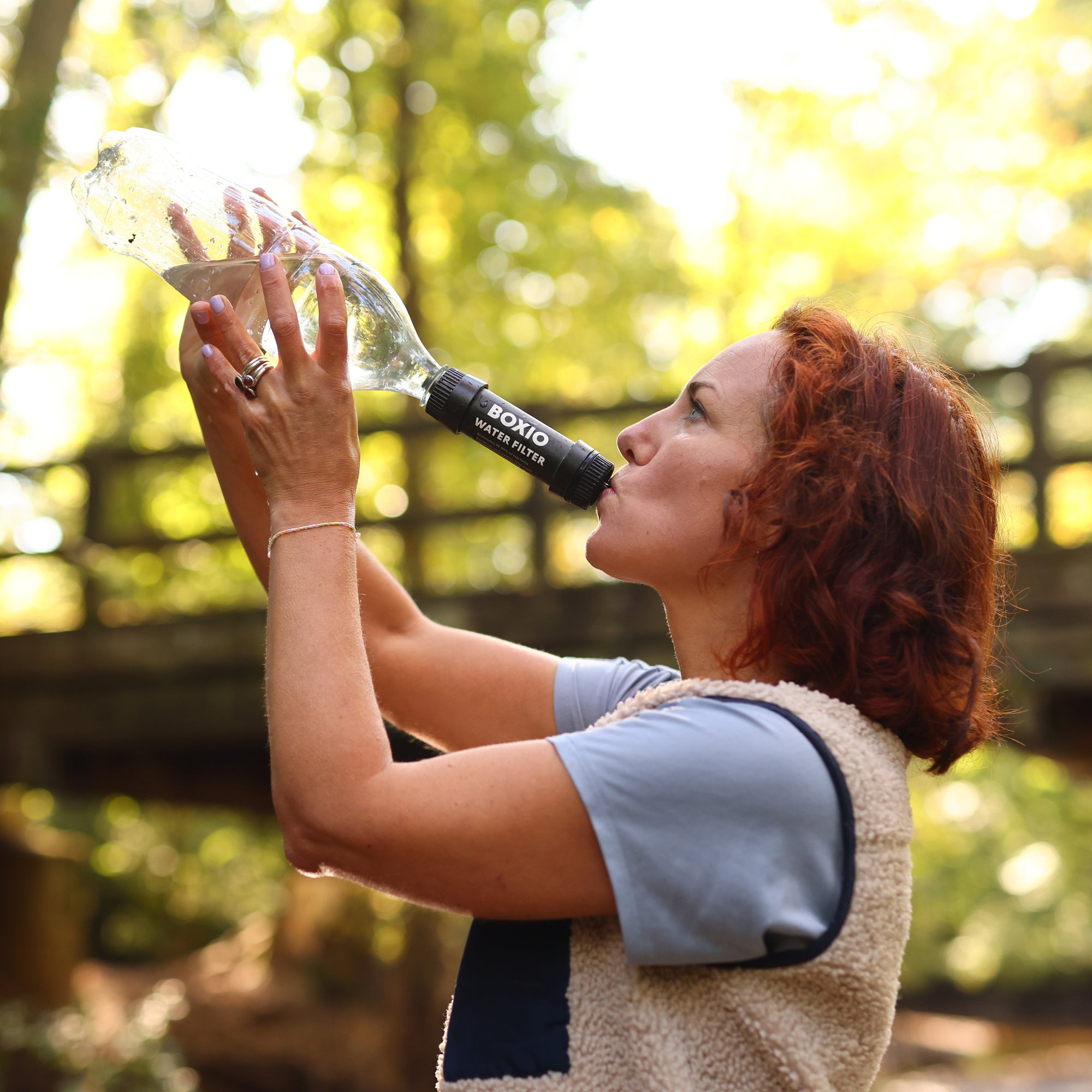

• with the supplied flexible bottle (bladder) or a standard PET bottle, the water can first be collected and then drunk directly through the filter

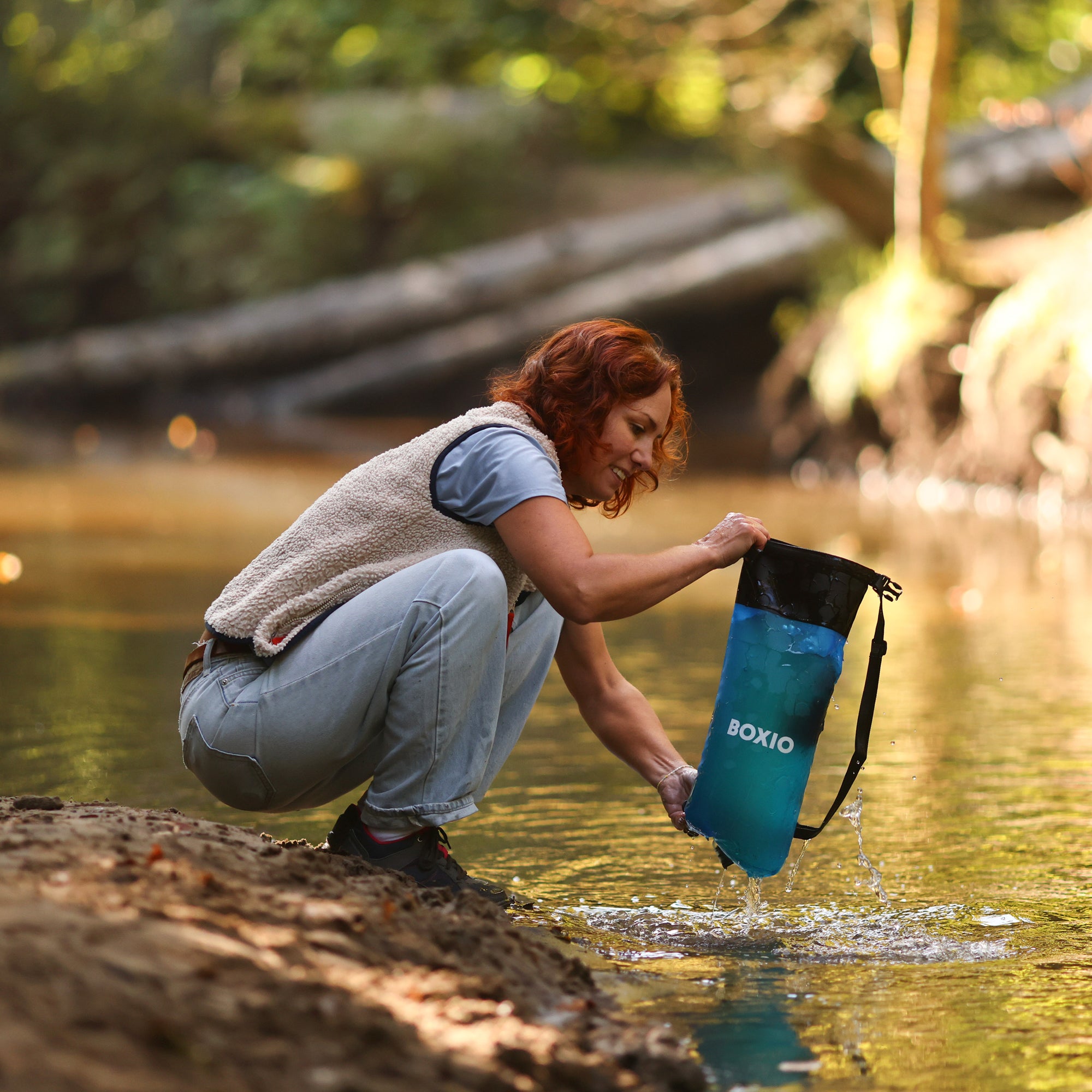

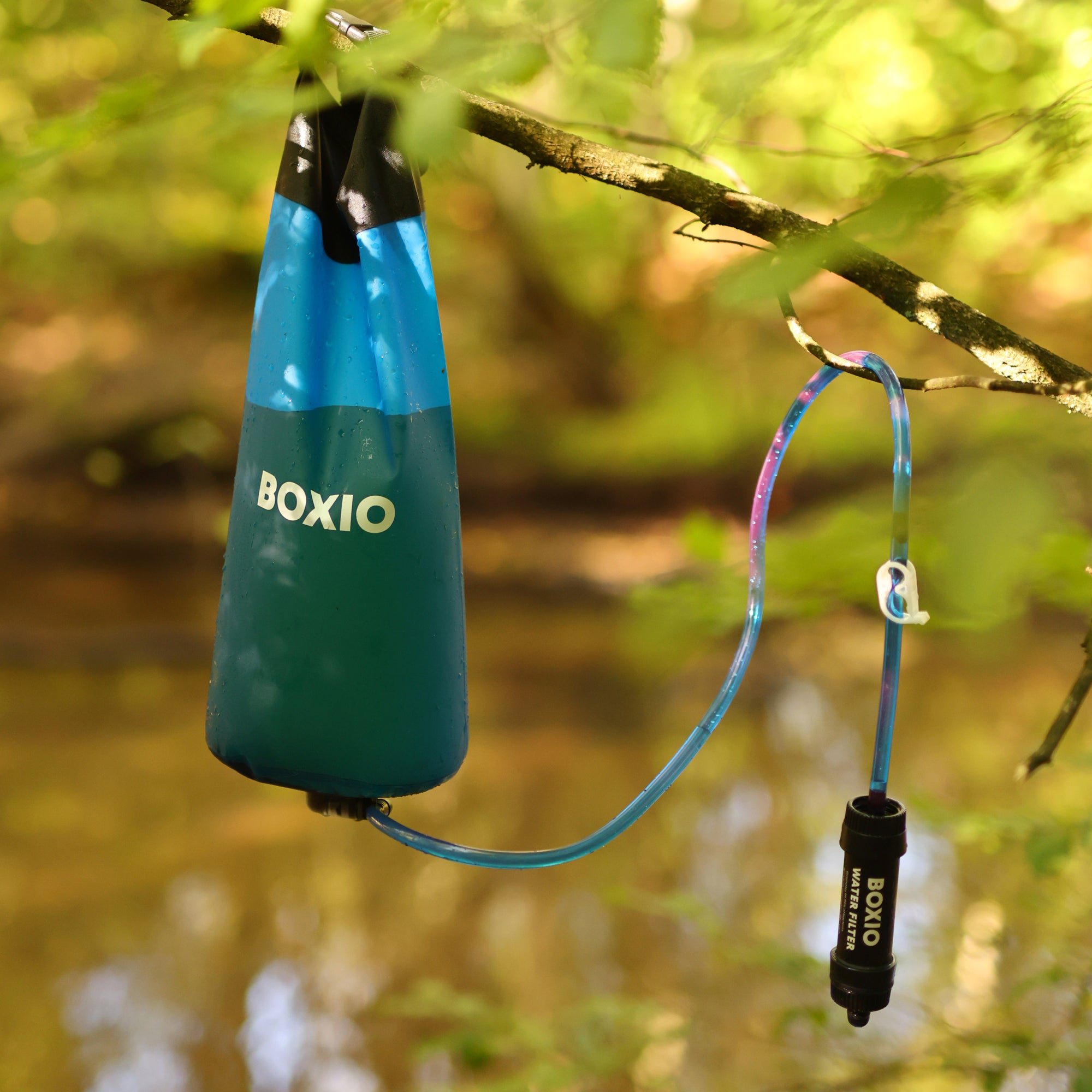

• With the 5L Waterbag¹ you can collect 5L (one canister filling for the WASH) and fill it into a canister via the filter (the Waterbag must be held or hung over the filter for this)

¹Waterbag is included in the scope of delivery of the WATER FILTER SYSTEM, the WASH UP & the WASH MAX +

*tested with E.coli bacteria
